Designing a Dimensional Appliance Nameplate with a Smooth Surface

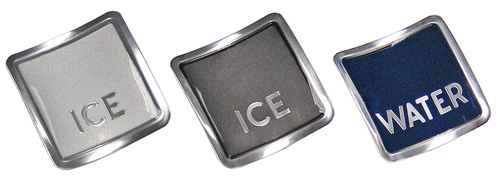

Nameplates are used on a diverse range of products, each with their own set of unique needs. A smooth cleanable surface was one of the requirements for the Whirlpool ice and water nameplates. The nameplates also needed to be adhered to a curved surface. A custom aluminum nameplate was created to meet these needs.
The solution, which Whirlpool and Northern Engraving worked together to design, is a truly unique urethane domed nameplate which is formed. The norlens, or doming process, is combined with embossed graphics and contrasting metallic background colors of silver, gray or blue. The dimensional graphics catch the light while the lens provides a smooth surface. A simple change in background color allowed the same nameplate to be used on different models.
What challenges do you have for your badge or nameplate design? Let's talk!
